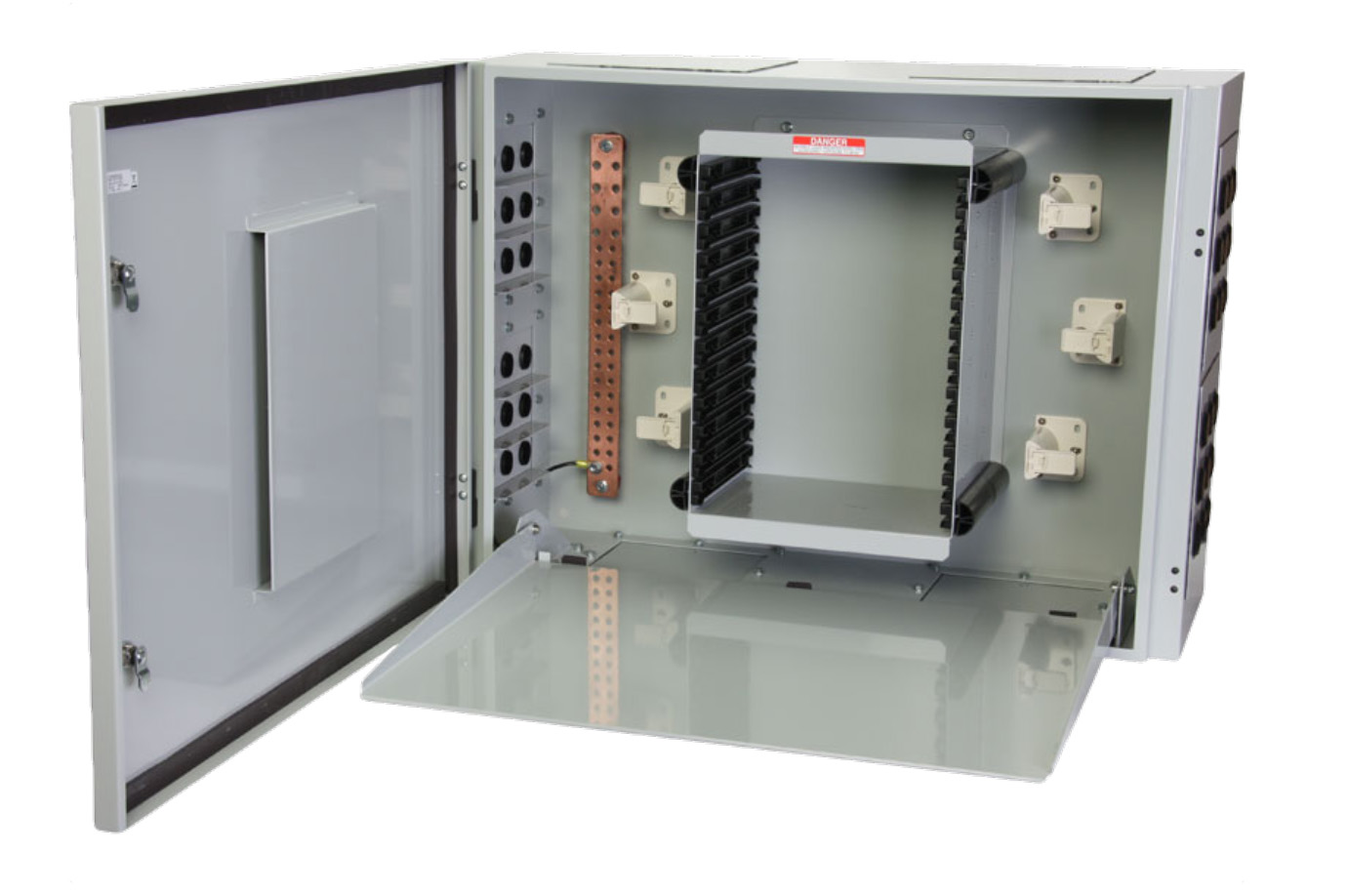

Universal Splice Vault

Priority universal optical splice vaults are designed to manage the transition between outside plant cables and fire-retardant indoor riser cables in fiber optic networks. These rugged and versatile enclosures are ideal for use in equipment rooms, splicing vaults or building entrance terminals in carrier or enterprise environments.

These Splice Vaults can accommodate up to 1728 mass fusion splices or 288 single fusion splices.

Ideal for splicing cable at indoor building entrance points, these vaults provide secure cable management and protection.

Features:

• Wall mounted
• Powder coated
• Dimensions: 31.5” W x 24.5” H x 13.5” D
• Accommodates up to 12 trays – each tray is capable of 12 mass fusion splices (144 fiber) or 24 single fiber splices
• Splice trays are ordered separately based on network requirements
• Internal cable management throughout enclosure and within splice trays protects fiber
• Removable door c/w Bellcore 216 entry that can be padlocked – can be mounted left or right
• Entry ports on all sides
• Integral pull-down work shelf for convenient splicing operations

Order vault part # P97-20989 indicate left or right hand hinge for door.

Splice Tray part # P97-19695
