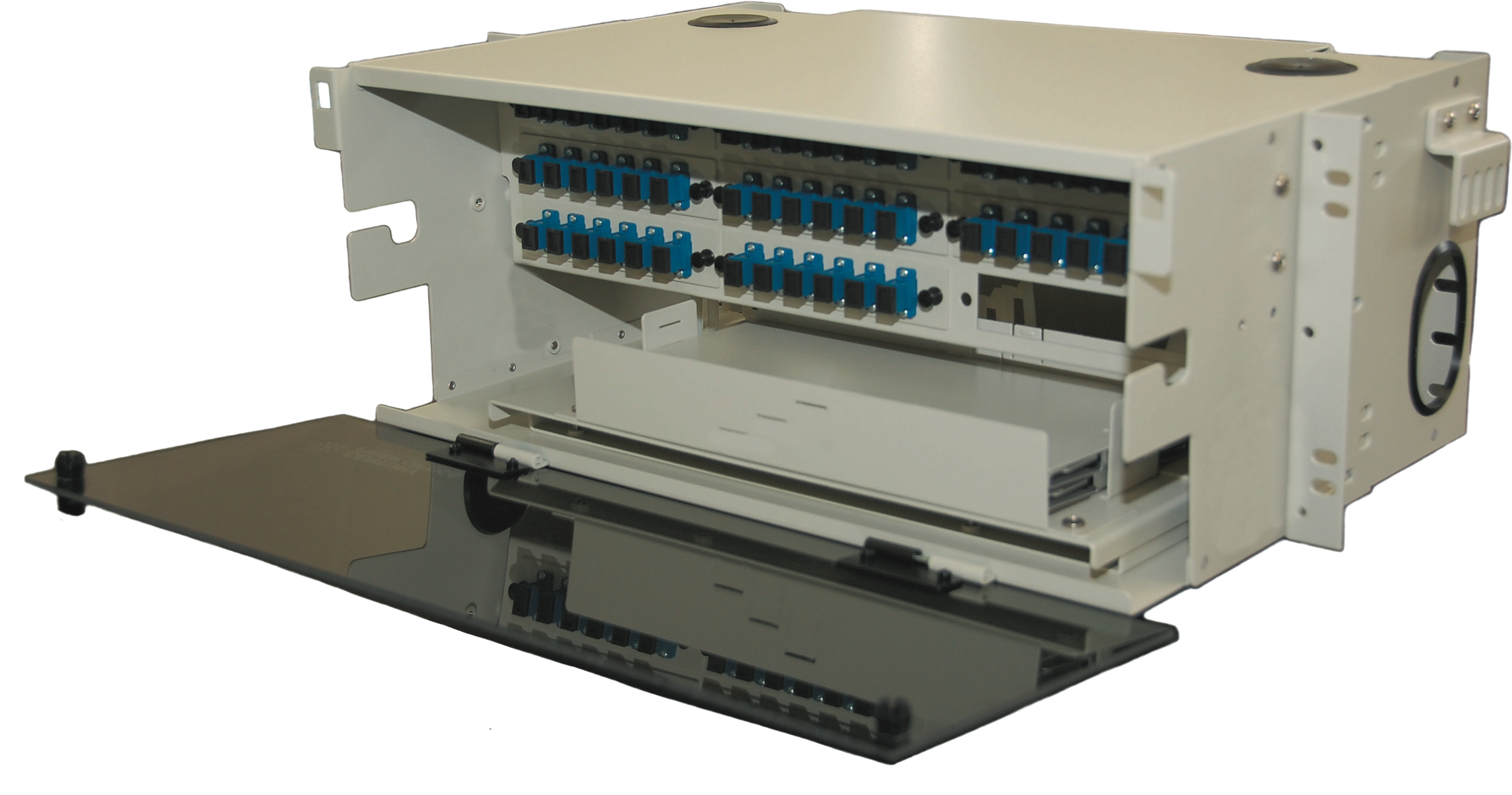

4U 48 Port Patch & Splice Panel

Priority’s rack mounted patch and slice panel is designed to be flexible, and easily configured for termination, interconnection or cross-connection requirements.

This patch and splice panel can be used on racks with either front or rear access and will accept cables from front, rear, top or bottom.  Access from the front is through a clear lexan removable door, there is also a removable rear access panel.

• Available for SC, LC, FC and ST connector styles
• Accepts 8 6-pack adapter panels with factory Installed 900 µm pigtails for easy splicing
• Pull out splice tray holder with 48 fiber capacity (4 trays x 12 fiber each)
• 4U (Dimensions: 19” wide x 7” high x 12.5” deep)
• Reversible mounting brackets for 19” or 23” EIA-310 racks
• Stackable, top and bottom cable entry, built in fiber management
• Light weight aluminum powder coated assembly, just 7lbs empty
